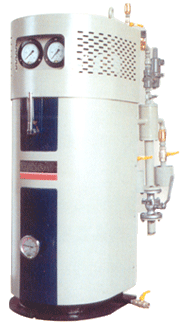

| Gasification / Mixed gas combined machine incorporate the vaporizer and venture to one compact equipment which can realize cylinder battery mixed gas，largely reduces the project investment. It can be used by the lesser scope company and it is the perfect embodiment of the practicability and economy. This equipment can supply with mixed gas and used to reconstruct the st-ation, add about 15% air to the LPG could be an ideal way to reduce the operating cost and energy. |
| |
|
| |
1.Operating conditions of mixed gas are stable and the cost is inexpensive.
2.Sound deadening, filtrating and nonreturn settings included in the air
3.inlet. Realizing mixed gas, reducing project investment.
4.Mixed gas outlet has higher presser and could satisfy the far transportation. |
|
 |
|
| |
|
| |
1.Manner of mixed gas: Venturi alluding
2. Mixed Proportion: 9:1—1:4.5 (LPG: air)
3. LPG spraying presser: 0.3:—0.5 Mpa
4. LPG outlet presser: ≤ 0.6 kgf / cm2 |
|
 |
|
| |
|
| |
|
| |

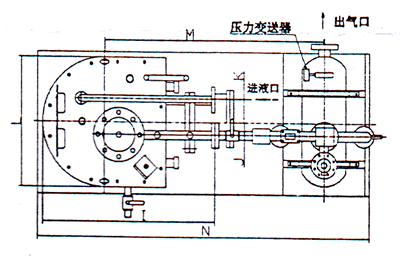

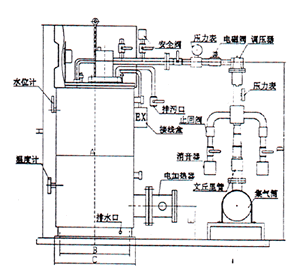

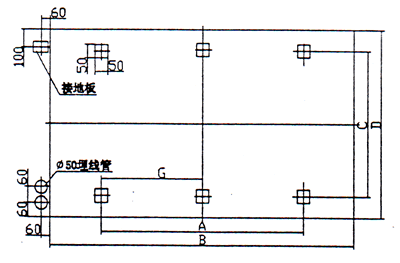

| Model |
Basic Equipment Specificationmm |
Exterior Equipment Specificationmm |
Weight kg |
Power |
Safety
Caliber |
| A |
B |
C |
D |
E |
F |
G |
A |
B |
C |
D |
E |
H |
I |
J |
K |
L |
N |
Inlet of Liquid |
Outlet of Liquid |
| HVM--75 |
1000 |
1280 |
490 |
520 |
450 |
100 |
|
500 |
474 |
520 |
1100 |
200 |
130 |
694 |
50 |
85 |
520 |
1280 |
DN20 |
DN40 |
220 |
15 |
1/2” |
| HVM—150 |
1000 |
1400 |
540 |
570 |
200 |
150 |
|
500 |
524 |
570 |
1260 |
200 |
1460 |
745 |
40 |
90 |
570 |
1280 |
DN20 |
DN50 |
270 |
23 |
1/2” |
| HVM—300 |
1400 |
1800 |
690 |
720 |
200 |
150 |
|
700 |
674 |
720 |
1351 |
210 |
1549 |
810 |
50 |
155 |
720 |
1800 |
DN25 |
DN80 |
400 |
45 |
1/2” |
| HVM—450 |
1600 |
2000 |
780 |
820 |
200 |
150 |
800 |
800 |
774 |
820 |
1709 |
210 |
1907 |
860 |
50 |
155 |
800 |
2000 |
DN25 |
DN100 |
560 |
75 |
1/2” |
|
| Attention: Parameters above are subject to change with the technical development of our company without notice. |
| |
