Operating

High-pressure ratio control mixer first modulates the LPG and compress air to the same presser through the linkage regula-tor. Because of the different sectional areas of the orifice, the air source of the two same pressers could change the mixed gas proportion. And the flux changes automatically bases on the changing of output presser of the gas mixture. The gas mixture pro-portion of the high-pressure ratio control mixer could modulate continuously in a range which beyond 1.5 times of the explosion limit. The mixer has safety catenation as follows: (1) Double air atmosphere differences exceeds limit                         (2) Air working presser exceeds limit (3) LPG working presser exceeds limit                                                  (4) LPG inlet temperature exceeds limit       When any alarm above exists, the emergency shut—off valve, which installs on the two inlets of the mixer, will shut off autom-atically, to ensure the system safety. When the mixer gets into the state of auto locking, it must be started manually by the staff.

Technical Features

1.Many points catenation including pressure, temperature, and pressure difference etc. included, allow extension oxygen instrumentand calorimeter interface. 2.Setting two circuits emergency shut—off valve, ensuring the system safety. 3.Large area involucra and piston can adjust to the flux large undulation. 4.Making non-standard equipment according to the user’s request.

Technical Parameters

1.Manner of mixed gas: float valve port proportion 2. Mixed proportion: any proportion except 1.5 times of explosion limit. 3. Mixed gas outlet pressure: 0.03—0.4 4. MpaAir source: outside compressed air .

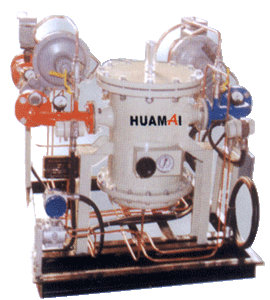

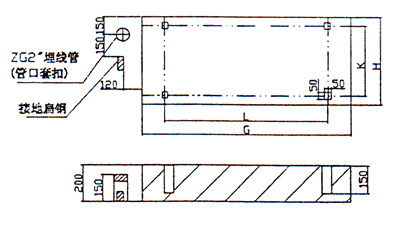

Overall dimension

Model Specification Dimension Electric consu- mption Mixed gas consu-mption Outlet Pres-sure Kgf/cm3 Outlet tube Height mm A V M C D G H K L 220V nm3/h HPM–1000 DN50 DN50 DN100 960 1200 1200 1400 810 960 500W 1000 1—3 630 HPM–1500 DN50 DN50 DN100 960 1200 1200 1400 810 960 500W 1500 1—3 670 HPM–2000 DN80 DN80 DN150 1090 1230 1300 1200 950 900 500W 2000 1—3 700 HPM–3000 DN80 DN80 DN200 1190 1330 1400 1300 1100 1000 500W 3000 1—3 750 HPM–4000 DN100 DN100 DN300 1190 1330 1400 1300 1100 1000 500W 4000 1—3 750

Attention: Parameters above are subject to change with the technical development of our company without notice.
