Most of the city pipe network in China adopted medium pressure transmission (u-sually 1-4bar), but the gas using of the direct combustion equipment (gas fired boiler，direct combustion central air-conditioning units) designed for low pressure ( us-ually 50-100mbr). Therefore, the company develops CHZ Series direct combustion equipment special regulator station for these users.
Aims at the characteristics (flow sudden change, needs to turn on and turn off quickly, uninterrupted supply), besides adopting two-way cut over automatically, with filtering, gas regulating, calculating and other functions, in the operating condition w-ith flow range has big changes, this series gas regulating station has quick reaction, stable outlet pressure, high turning off accuracy functions, and could meet the us-ing request of the industrial and civilian gas using direct combustion equipment. |
|
 |
|
| |
|
| |
 |
|
This system is the product with standard configuration, and both the main and subsidiary regulator adopt international renowned brand. Other parts are quality products made in China, achieved high quality, reliability and accuracy working. The station equips special structure filter whose accuracy highly to 5μM. Differential pressure gauge could reflect the extent of dirty filter elements, and users could replace it timely. The regulator equipped with high/low pressure automatic cut off setting and safety releasing setting, which assures the outlet pressure kept in a certain range automatically with the change of gas using and fluctuation of inlet pressure. This equipment has excellent expansion capacities, and can increase |
|
flow meter, record pressure, reduce noise, monitor, keep warm,and mix hot measurement system functions as the users required .
Compact design, simple installation process and more beautiful designing trunk with the adopting of the unique patent, included in the regulator station. The trunk surface have been dealt with by phosphorization anti-rust, for indoor or outdoor installation, safety distance could significantly narrowed. Before producing, it needs air tightness testing. Each control point sets strictly as users’ requirements, to ensure the operation of users simple and convenient. |
| |
| Main Technical Parameters |
|
| |
Model |
CHZ-100A/B |
CHZ-200A/B |
CHZ-300A/B |
CHZ-600A/B |
CHZ-1000A/B |
CHZ-2000A/B |
CHZ-3000A/B |
Main Regulator |
B/249 |
A/109 |
A/149 |
A/149 |
MBN/40 |
MBN/50 |
MBN/65 |
Inlet Pressure Range (Mpa) |
0.02-0.5 |
0.02-0.5 |
0.02-0.5 |
0.02-0.5 |
0.02-0.5 |
0.02-0.5 |
0.02-0.5 |
Outlet Pressure Range (Kpa) |
0.8-200 |
0.8-200 |
0.8-200 |
0.8-200 |
0.8-200 |
0.8-200 |
0.8-200 |
Flows Rate (NG Nm3/h) |
100 |
200 |
300 |
600 |
1000 |
2000 |
3000 |
Inlet Flange (mm) |
50 |
50 |
50 |
50 |
65 |
80 |
125 |
Outlet Flange (mm) |
50 |
65 |
65 |
80 |
150 |
200 |
250 |
Space between inlet or outlet flange center(mm) |
A |
690 |
700 |
700 |
810 |
1200 |
1200 |
1350 |
B |
690 |
700 |
700 |
810 |
1200 |
1200 |
1350 |
Cabinet size (mm) |
A |
1100*950*1000 |
1200*950*1050 |
1200*950*1050 |
1360*1000*1200 |
1600*1200*1700 |
1800*1200*1800 |
1900*1300*1900 |
B |
1100*550*1000 |
1200*650*1050 |
1200*650*1050 |
1360*650*1200 |
1600*910*1700 |
1800*910*1800 |
1900*910*1900 |
Regulating Accuracy (δP2) |
≤±5% |
Lock-up Accuracy |
≤10% |
Working Temperature |
-20℃ - +60℃ |
Ambient Temperature |
-30℃ - +60℃ |
Applicable Gas |
Town gas、LPG、Mixed Gas、NG |
|
| |

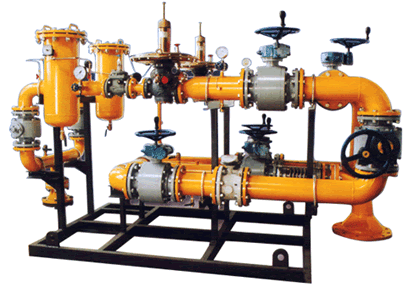

| The regulator station supplied for Northwest oilfield gas regulator group by our company |
| |
|
| |
|
|
