| The vehichlar natural gascompressor developed by our company is of complete serives including Ltype,Wtype,Dtype,Vtypoe,Ztype,Cooling is ofwater,air and water-air mixture,Suction pressure is 0-20Mpa while gas supply is 150-300Nm3/h,Lubricating oil pressure,water pressure and each stage discharge pressure ari controlled by PLC.This kind of compressor has many advantages,such as smooth,running,low nois-e,easy operation and maintenance,The comjpressor is widely used for big,Middle and smll CNGfilling station and mother-daughter dtation ofdifferent suction pressure and discharge capacity. |
|
|
| |
|
| |
|
The system can control the on-line operation of compr-essor and accessory equipment through computer or PL-C,and provide relevant safety protection(e.g.suction pres-sure,Each stage discharge pressure,lubricating oil pres-sure,Cooling water,temperature,etc.) |
| |
|
| |
Suction system consists of pipe pressure adjusting device,suction bu-ffer filter and so on .Pressure adjusting device is used to adjust suction pressure.
Suction buffer filter is used tobuffer gas,steadysuction pressureReduce gas pulse,remove impurities in gas to protect system Equipment |
|
 |
|
| |
|
| |
 |
|

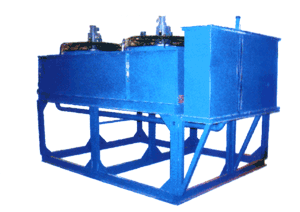

Thesystemconsisting of water pump.cooling tower.valve,is used to cool water-cooled nat-ural gas compressor.In order to remove sca-le.the.cooling system shall be equiped with electric water treator.The specification of co-oling system depends on compressor type and quantity.The cooling tower is not needed if the natural gas compressor is cooled by air or air-water mixture. |
|
| |
| High pressure dewatering device |
|
| |
Rear treatment system is mainly the high pressure regenerative dryer which dry and purify the high pressure gas after compression .It is also one of main acces-sory equipment for CNG filling station and consists of separator,filter ,oil elimin-ator,cooler,heater,pressure reducing device and so on.
The treatment capacity of GZQ series high pressure regenerative dryer is 1000-Nm3/h..1200Nm3/h.1500Nm3/h and2000Nm3/h.After treatment,natural gas dew-pint at atmosphere≤-62℃,dust content≤5mg/Nm3,dus Size≤10um.regenerated gas consumpiton:20-40Nm3/h. |
|
|
| |
| Waste gas collecting system |
|
| |
| |
|
|
The system recovers waste gas of compressor into suction system for reducing natural gas waste |
|
| |
| Gas transmission control system |
|
| |
The pressure difference between cylinder cascades and vehi-cle cylinder directly affacts filling time. The system can keep the best filling speed for Vehicle.
The system mainlyis program control panel.We can provide manual and automatic program control panels. |
|
 |
|
|
|
| |
| The system is used to store compressed high pressure natural gas to save filling time. The system has three groups for high pressure.middle pressure and low pressure.The gas may be stored in two ways;cylinder cascades and gas well. |
 |
|
| |
|
| |
 |

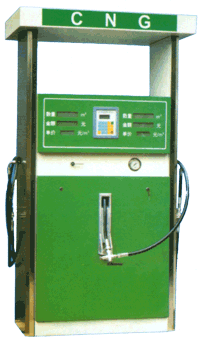

The system is dispenser which can measure the compressed natural gas filled into high pressure cylinder of natural gas vehicle .There are two dispenser Types;manual And automatic dispensere. |
|
| |
| L-type series natural gas compressor |
|
| |
| The series compressor is of L type, water cooling,stationary reciprocating piston.It′s cylinder is lubricated with less oil,dis-charge capacity is 25MPa,gas supply is 250～300Nm3/h.The compressor is fitted with PLC for automatic control and protec-tion.The compressor is of whole package on skid ,low speed, stable running,low vibration,low noise,applied to big and mid-dle filling station, |
|
|
|
| |
|
|
