Detect theory: Electrochemical
Detected gases: Coal gas and toxic gases
Detect mode: Pump absorption
Range: 0～1000ppm
Accuracy: ±5%FS
Response time: less than 30s
Alarm mode: audible and visual alarm
Explosion proof mode: Intrinsic safety “i ”
Explosion proof Mark: Exib ⅡCT4
Temperature range: —20℃～+45℃
Relative humidity: 20%～95%RH
Power supply: rechargeable lithium battery
Power consumption: continuously work for 8 hours (under normal temperature)
Dimension: 130mm*60mm*28mm

Product Characteristics

High measurement accuracy
The sensor adopts import gas sensitive components with the characteristic of high accuracy, strong reliability, quick response and renewing time, strong anti-jamming and easy to choose gas.
Intuitionistic and clear shows
Using large liquid crystal screen, show the gas concentration, range and present time; the buttons using touching way, working with multiple icon of the display makes the operating more sententious.
Low consumption
Small volume, light weight, low consumption.
Proof explosion
Intrinsic safetystructure can be used in dangerous 1,2 areas.
High response speed
Imbibing working principle makes the response speed faster.
Long working time and life
Selecting high-powered nickel battery with long working time. Also using electrification protection and low pressure, which ensures the battery more reliable and long using life

Panel Display

1.House mark
2.Gas model and range display area
3.Gas concentration display area
4.Function icon
5.Electric quantity display area
6.Time display area
7.Gas Rang icon
8.Unit display area

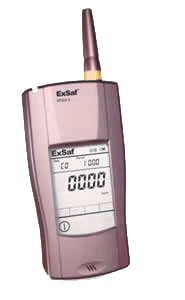

Total Structure Chart

1.Feeler lever
2. Indicator light
3.Display screen
4.Buzzer hole
5.Charging jack
6.Scavenging port
7.Locking closure
8.Nameplate
9.Battery cover
10.Battery

Working principle

The detector adopts pump absorption way to do sampling of the measure combustible gas. The sensor changes the concentration of the sampling gas into electric quantity signal. After magnifying of the signal, send it to the MCU to complete the concentration measurement and display.

Specification and Applicable Gas

Specification	Model	Range	Peek over loading
EP200-2-Ⅰ	CO	0-500ppm	1000ppm
EP200-2-Ⅱ	CO	0-1000ppm	2000ppm
EP200-2-Ⅲ	H2S	0-100ppm	500ppm
EP200-2-Ⅳ	H2S	0-100ppm	150ppm
EP200-2-Ⅴ	H2S	0-200ppm	400ppm
EP200-2-Ⅵ	CL2	0-20ppm	50ppm
EP200-2-Ⅶ	SO2	0-100ppm
EP200-2-Ⅷ	NO2	0-50ppm
EP200-2-Ⅸ	NO	0-100ppm
EP200-2-Ⅹ	NH3	0-100ppm
EP200-2-Ⅺ	O2	0-25% V/v	30%v/v
