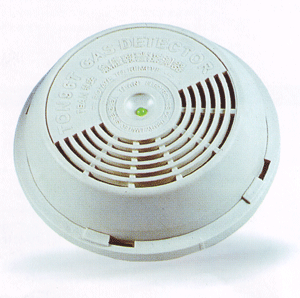

Theory: Semiconductor
Detected gas: Combustible
Alarm mode: Audible and visual alarm (2 alarm levels)
Output: One Group normal open contact output
Contact capacity: AC220V/1A, 24V/1A
Working temperature: -10℃～+55℃
Relative humidity：10%～95%
Power supply: AC220V/50Hz\
Power consumption: Below 1.5W |
|
| |
|
| |
High measurement accuracy
The sensor adopts import gas sensitive components with the characteristic of high accuracy and strong reliability.
The bus system connecting
The bus transport (4 bus) easy to connect, reduce installation cost.
Number signal bus output
Number signal bus outputting, improve anti-jamming ability of the system.
Power
AC220V and DC24V are supplied for users to choose.
Convenient to install
Inside the base, there’s three mounting hole for installation. Easy to install. Using hanging concealed wire installation, which makes it beautiful and sententiousness in the room |
|
| |
Detector Installation and Fixation
|
|
| |
First find the suitable position for installation.
- Open the cover of the detector.(Circumrotate counterclockwise 5 degree)
- Put the base of the detector into the installation position, making well marks or perforation in the wall against to the three installation holes. Remove the base of the detector. Then making well installation holes and put into random annex glue
- Put the detector into the installation position again, use the random installation annexauack screns
Fix the detector base on the installation position, connect the power line and signal bus onto the corresponding terminal, cover the detector upper cover over again, the gas alarm detector has completed installation |
|
| |
|
| |
 |

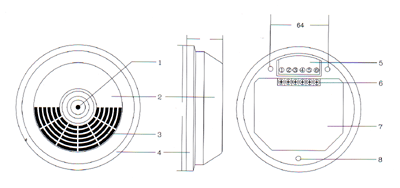

1.Indicator light (green is normal, yellow means failure, red means alarm)
2.
Upper-cover
3.
Air / sound vent
4.
Detector base
5.
Service entrance
6.
Connecting termina
① 220AC (L)
② 220AC (N)
③ Normally open contact 1
④ Normally open contact 2
7.
Circuit board⑤ Bus +
8.
Mounting hole⑥ Bus -
|
|
| |
| |

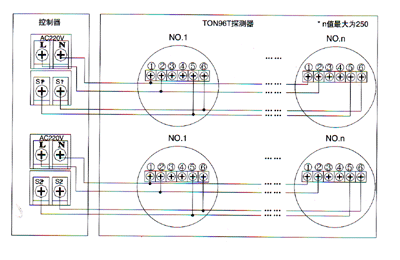

| Track junction with the controller
|
|
|
|
| |
|
|
