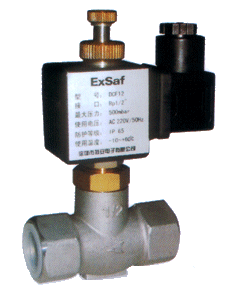

FAST CUT-OFF VALVE

Rated voltage: AC 220V/50Hz (-50%+10%)
Maximum pressure: 50k Pa=500mbr

Applicable medium: coal gas, liquefied petroleum gas, natural gas

Interface dimension: Rp 1/2”

Medium temperature：-10℃～+55℃

Protection level: IP65

    Product Characteristics


Fast cut-off calve generally used house life place, working together with independent combustible gas detector.

After receiving gas detector leaking signal, it will cut the dangerous gas circulating channels automatically, to stop from occurring of the grave accident.

   Total Structure Chart


Model: DCF12

Interface: Rp1/2”

Maximum voltage: 220V/50Hz

Protection level: IP65

Working temperature：-10℃～+60℃
